Specificatii



Model / producator	UNV (Uniview)
Inregistrare	8MP lite@8fps, 5MP lite@12fps, 4MP lite/1080P@15fps, 720P@30fps
Camere suportate	HDTVI/AHD/CVI, CVBS+ 2 ch. IP max 4MP
Compresie	H.265, H.264
Redare	1-4 canale sincronizate
Intrari	4 x BNC; 1 x audio, LAN 10/100, 2 x USB, 1 x RS485
Iesiri	HDMI - 3840 x 2160, VGA - 1920 x 1080, 1 audio
Stocare	1 x HDD SATA max. 8TB (neinclus)
Stream	8MP Lite/5MP/5MP Lite/4MP Lite/1080P/720P/CIF
Alimentare	12V DC
Consum	max. 10W (fara HDD)
Dimensiuni	260 × 226 × 47 mm
Alarma IN/OUT	4 IN / 1 OUT
Audio	4 x audio over coaxial TVI, 1 x analogic RCA
Greutate	max. 1.1 Kg (fara HDD)
Temperatura operare	-10°C ~+55°C
Latime banda	intrare 24Mbps / iesire 48Mbps

Descriere

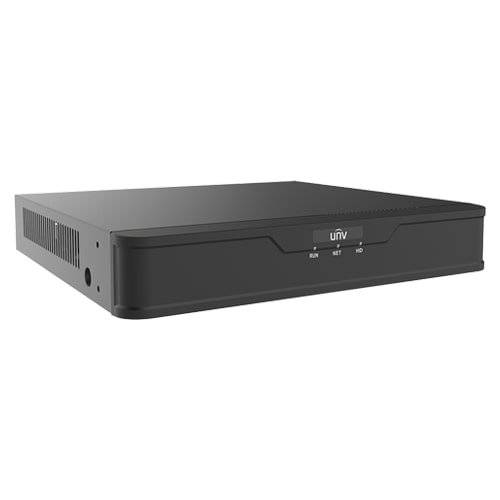

XVR Hibrid de la Uniview, suporta camere analog HD si IP cu rezolutie de pana la 8MP, capacitate 4 canale Analog + 2 canale IP (sau pana la 6 canale IP, dupa conversia camerelor analog), TVI/AHD/CVI/CVBS/IP, playback sincron pe 4 canale la o rezolutie maxima de 8MP prin HDMI si 2MP prin VGA, capacitate stocare 1 HDD maxim 8TB (neinclus). Suporta Audio over Coaxial pentru camere TVI. Accepta camere ce au protocol ONVIF si RTSP. Suporta detectia miscarii.
